Create a Captcha with rubyvips, Then Read It Back in Ruby

One of my Rails apps logs into a third-party portal on a schedule. That portal puts a captcha in front of every login: a 290x80 PNG, six glyphs, drawn over a fixed background texture.

A human types it. A cron job cannot. So the controller has two paths: create takes whatever a person typed, and auto_create hands the image to an offline solver. Both open the session the same way; only the second one is allowed to fail with a “needs a human” error and fall back to the screen.

The interesting part is not the HTTP. Reading six glyphs off a background is four image operations, and all four are one-line libvips calls. To find out whether that holds up, I wrote a captcha generator with rubyvips that produces images whose answers I already know, then pointed the solver at it.

Versions: Ruby 4.0.7, ruby-vips 2.3.0, libvips 8.18.7. The solver (segment, normalise, classify, abstain) is 189 lines of Ruby, and no gem beyond ruby-vips.

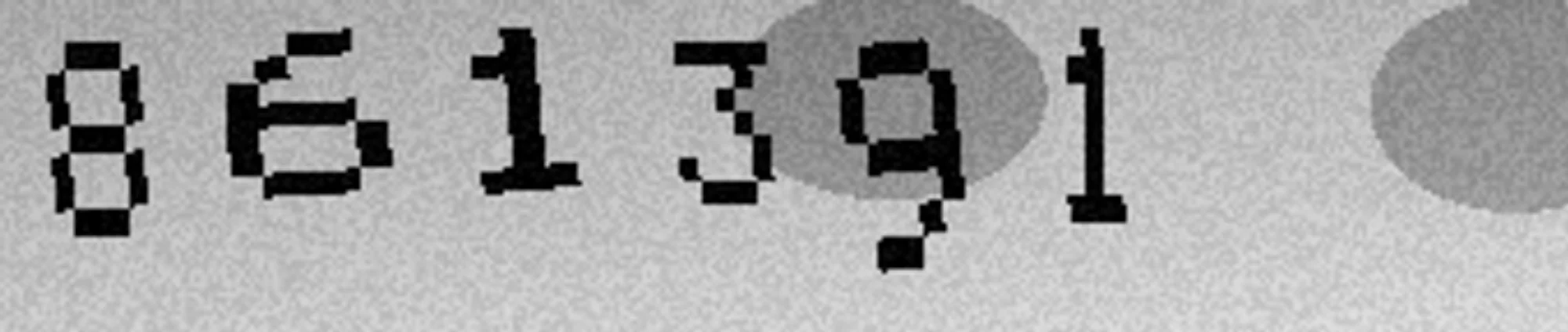

Part 1: creating a captcha you already know the answer to

The generator has one job beyond drawing digits: the background must be byte-identical across every sample. Background subtraction only works if there is a background to subtract, so the paper is built once and memoized.

# sample.rb
class Rng
  def initialize(seed) = @s = seed
  def next_f = @s = (@s * 1_103_515_245 + 12_345) & 0x7fffffff
  def rand = next_f / 0x7fffffff.to_f
  def range(a, b) = a + rand * (b - a)
  def int(a, b) = a + (rand * (b - a + 1)).floor
end

A hand-rolled LCG, not Random, so every number in this post is reproducible from a seed. eval.rb runs 300 samples from seeds 50000–50299; you get the same table on any machine.

The paper has to be ugly in specific ways:

# Uneven lighting: a vertical tone drift plus a horizontal one, so that
# no single cut point separates ink from paper across the whole frame.
v = 190.0 + (y / H.to_f * 30 - 15) + (x / W.to_f * 16 - 8)
blobs.each do |bx, by, rw, rh|
  next if ((x - bx) / rw.to_f)**2 + ((y - by) / rh.to_f)**2 > 1.0
  v -= 46
end

That is an 84-level spread across one frame (129 in the middle of a blob, 213 in the bright corner), and it is the single most important property of the generator. I will come back to it in the results.

Digits come from a 5x7 bitmap font. Each one is stamped with independent horizontal and vertical scale, a tilt of ±6°, and its own ink density:

angle = rng.range(-MAX_TILT, MAX_TILT) * Math::PI / 180
box_w = (cell_w * cos.abs + cell_h * sin.abs).ceil
box_h = (cell_w * sin.abs + cell_h * cos.abs).ceil

box_h.times do |dy|
  box_w.times do |dx|
    # Every destination pixel is inverse-mapped into the font cell, so the
    # tilt costs a nearest-neighbour lookup and no resampling buffer.
    source_x = (ox * cos + oy * sin) + cell_w / 2.0
    source_y = (-ox * sin + oy * cos) + cell_h / 2.0
    next unless source_x.between?(0, cell_w) && source_y.between?(0, cell_h)
    next if bits[(source_y / vscale).floor][(source_x / hscale).floor] == "0"
    pixels[py][px] = (ink + rng.int(-8, 8)).clamp(0, 255)
  end
end

Two details are load-bearing and were not obvious:

Ink is chosen relative to the paper, not absolutely. Measure the lightest paper pixel in the digit band first, then put ink 30–170 levels below it. With an absolute ink value, a “dark” sample renders digits that vanish over the bright half of the frame. The sample is not hard; it is impossible.

The gap between digits is wider than the tilt. x += box_w + rng.int(9, 15). A tilted cell is wider than its upright version. When I first used a 4–8 pixel gap, two digits touched and column-projection segmentation fused them into one blob. That belongs in the technique’s contract, not in the generator: projection segmentation assumes a blank column between glyphs. Real captchas that let characters collide need connected-component labelling or a split heuristic instead.

Finally, ±14 of sensor noise over the whole frame, and the array goes into a Vips::Image. That is where the generator stops and the solver begins.

Part 2: reading it back

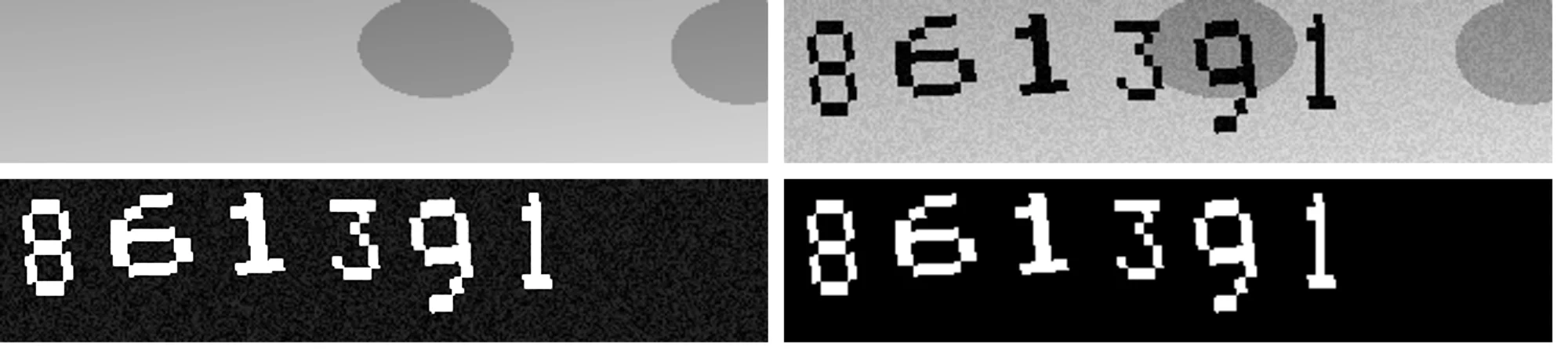

Stage 1: subtract the background, then threshold

# pipeline.rb
def initialize(image, reference: Sample.paper)
  @grey = image.bands == 1 ? image : image.extract_band(0, n: 3).colourspace("b-w")
  @difference = reference.subtract(@grey).abs   # libvips has no `difference`
  @mask = @difference.relational_const(:more, THRESHOLD)
end

Subtract-then-abs is the whole trick. Ink sitting 40 levels below paper in a shadowed corner is now worth exactly as much as ink sitting 40 levels below paper in the light. The lighting gradient cancels, and one threshold works everywhere.

THRESHOLD is 30, and it is not a taste decision. The reference is noise-free and the sample carries ±14, so a noise-only pixel can differ by 14 and the cut has to clear 28. Anything differing by more than 30 is ink.

Stage 2: find the glyphs with a column projection

# Mean ink per column as a single row of pixels: reduce(1, h-1) block-averages
# each column down to one value, which is the projection profile.
def column_profile = @mask.reduce(1, @mask.height - 1)

def ink_columns(min_pixels = 2)
  column_profile.relational_const(:more, 255.0 * min_pixels / @mask.height)
end

Contiguous runs of inked columns are glyphs: one pass over a single row of numbers. The threshold is written as “at least two inked rows per column” rather than as a magic number, so the rule survives a different cut.

I raised it from one pixel while chasing a bug where two digits fused. The bug turned out to be geometric (the tilt eating the gap), not the pixel count. It stayed because naming the assumption is worth more than the default.

At THRESHOLD = 30 with ±14 of noise, a noise-only pixel cannot ink a column at all, so this guard does nothing on my samples. It matters for the real solver, where JPEG ringing around a glyph edge does produce isolated pixels.

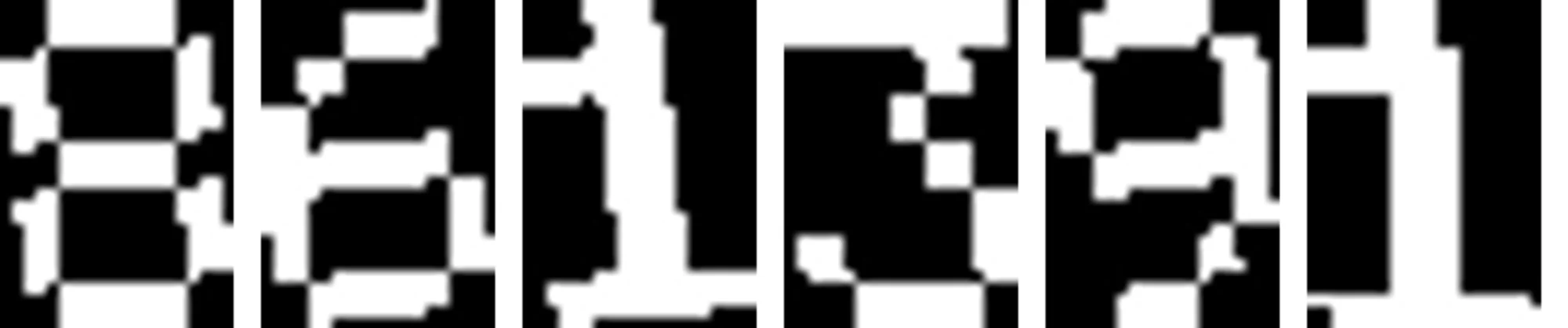

Stage 3: normalise, so glyphs can be compared at all

Raw crops differ in size, position, stroke thickness and tilt. Comparing them directly compares noise:

# pipeline.rb
def self.call(mask, frame: mask)
  return nil if mask.width < 3 || mask.height < 2

  left, top, width, height = mask.find_trim(background: 0)
  return nil if width < 3 || height < 5
  return nil if width > frame.width * 0.6 || height > frame.height * 0.9

  mask.extract_area(left, top, width, height)
      .resize(WIDTH.to_f / width, vscale: HEIGHT.to_f / height, kernel: "nearest")
      .relational_const(:more, 127)
end

Trim to the ink bounding box, resample to a fixed 20x28 canvas, re-binarise. After this, a 5x7 digit scaled 5x lands in the same box as one scaled 7x.

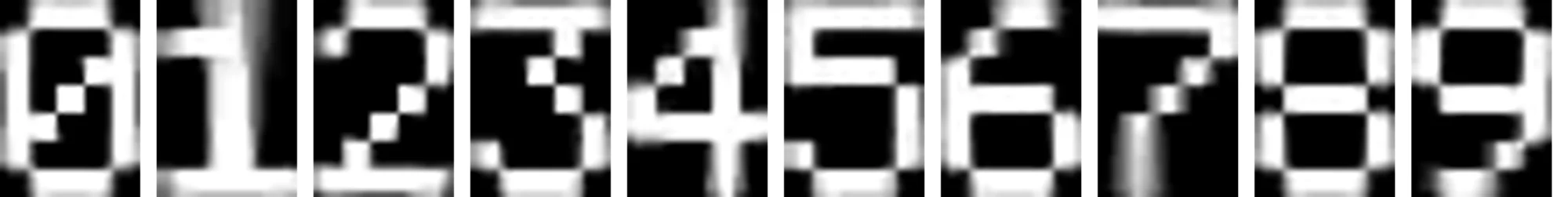

Stage 4: match against averaged templates

One template per digit, built by harvesting glyphs out of 80 generated captchas (480 glyphs, about 48 per digit) and taking the pixel-wise mean:

seen[char] += 1
Pix.rows(normalised).each_with_index do |row, y|
  row.each_with_index { |v, x| sums[char][y][x] += v }
end

A single render is an exact match to itself and nothing else. The mean of ~48 of them is a soft, centred average shape that most noisy glyphs still resemble. That is why the templates below have grey edges.

Matching is one libvips call, and the runner-up distance is the confidence:

# Mean absolute difference, done as a libvips subtract-abs-average.
# 0 is identical, 255 is maximally different.
def self.distance(glyph, template) = glyph.subtract(template).abs.avg

def match(glyph)
  ranked = @templates.map { |char, template| [ char, Template.distance(glyph, template) ] }.sort_by(&:last)
  (best, distance), (_, second) = ranked[0], ranked[1]
  [ best, distance, second - distance ]
end

Four libvips traps I hit while writing this

Every one of these produced a wrong answer or a crash while looking like correct code.

The first two are worth remembering beyond captchas: any time you hand find_trim a mask you built yourself, pass background:.

What the numbers actually say

eval.rb generates 300 captchas, solves each one, and compares against the answer it generated. It also runs the same 300 through a baseline: a plain global cut, anything darker than the cut is ink, no reference image.

=== background subtraction, threshold 30 ===
captchas             300
submitted            298 (99.3%)
abstained            0 wrong segment count, 2 low confidence
character accuracy   100.0% of submitted
full-string accuracy 100.0% of submitted
solving 300 captchas took 10.57s (35.2ms each)

=== background subtraction, templates from clean renders ===
captchas             300
submitted            297 (99.0%)
character accuracy   100.0% of submitted
full-string accuracy 100.0% of submitted

=== global cut=130 ===
captchas             300
submitted            2 (0.7%)
abstained            181 wrong segment count, 117 low confidence
full-string accuracy 0.0% of submitted

=== global cut=170 ===
submitted            0 (0.0%)
abstained            285 wrong segment count, 15 low confidence
nothing was submitted

Three honest readings:

The baseline is not “worse”. It is dead, and the reason is the generator. Ink spans 30–170 levels of contrast while paper spans 84 levels end to end, so ink and paper overlap in absolute grey. No cut exists that separates them. If your captchas are a single flat tone with solid black digits, background subtraction buys you nothing. Mine is the hard case on purpose.

100% is an upper bound, not a field measurement. Templates come from the same generator as the evaluation set, the font is a crisp bitmap, and the tilt is ±6°. The middle run is the sanity check that matters: templates built from clean upright renders, one per digit with no noise and no tilt, still score 100%. So the tolerance comes from averaging and normalisation, not from leaking tilt into the templates. I would not expect that to survive anti-aliased glyphs at a different resolution.

Abstaining is the feature, not the failure. Two of 300 captchas came back low-confidence and were thrown away rather than submitted. A wrong guess costs a real attempt on the login endpoint:

def solve(image, solver: Solver.method(:new))
  glyphs = solver.call(image).normalized
  return [ :abstain_segments, "" ] unless glyphs.size == Sample::LENGTH

  text = +""
  glyphs.each do |glyph|
    char, _distance, margin = CLASSIFIER.match(glyph)
    return [ :abstain_margin, text ] if margin < MIN_MARGIN
    text << char
  end
  [ :success, text ]
end

Two ways to abstain: wrong segment count (digits fused or a stroke vanished) and low margin (two templates too close to call). Either way, fetch a fresh captcha. Measured over 60 logins that allow 5 fetches each:

At ~35ms per captcha, five attempts cost 175ms of CPU. No reason to gamble on a guess when the server hands you a new challenge for free.

The production solver looks nothing like this

The captcha I actually have to beat is not six stamped digits. It is 34 characters (ten digits and 24 lowercase letters, no l and no z), rendered with anti-aliasing, always at the same place inside the same crop window (CROP_X 75, CROP_Y 24, CROP_WIDTH 130, CROP_HEIGHT 35), over a background image I have vendored as empty.jpg. Pixel-exact templates do not survive that.

The solver I ship keeps stages 1 and 2 (subtract, amplify the difference ×10, threshold, split on blank columns) and throws away stage 4. Instead of comparing pictures, it measures five numbers per glyph:

# app/models/captcha_solver.rb (excerpt; image/left/top/columns are instance state)
def features(glyph, height = CROP_HEIGHT)
  [
    image.sum { |row| row.sum } / 256.0,                      # total ink
    image.sum { |row| row[0...left].sum } / 256.0,            # ink left of centre
    image[0...top].sum { |row| row.sum } / 256.0,             # ink above centre
    image[top...height].sum { |row| row.sum } / 256.0,        # ink below centre
    columns.to_f                                             # glyph width
  ]
end

Five ink statistics, matched against hand-labelled reference tables with weights [1, 3, 2, 8, 3], minimum margin 12, maximum distance 60. Deliberately coarse: total ink, where the mass sits, how wide the glyph is. Anti-aliasing and JPEG ringing move the pixels; they barely move the mass.

The retry loop:

# app/models/account.rb
while attempts < max_attempts
  attempts += 1
  captcha = client.captcha                    # a fresh challenge every time
  result = solve_captcha(solver, captcha.png_bytes)
  next unless result&.ok?                    # abstaining costs nothing

  begin
    session = client.authenticate(captcha_id: captcha.id, captcha_text: result.value)
    return finish_connect!(client, session, via: "solver")
  rescue Client::RequestFailed => error
    raise unless error.code == Client::WRONG_CAPTCHA_CODE
  end
end

raise Client::NeedsHuman, "Automatic captcha solving gave up after #{attempts} attempts."

Submit only confident solves, retry only on a wrong-captcha response, fall back to the human screen instead of hammering the endpoint. auto_create in the controller is that last line in one route.

For the record: this is for logging into an account I own, from a server I control. A captcha is an anti-automation control on someone else’s property. The interesting part of this post is the image arithmetic, not the endpoint.

Takeaway

Four libvips calls (subtract/abs, relational_const, reduce, resize) plus an averaged template and a margin turn a noisy 290x80 PNG into a string in tens of milliseconds, with no ML and no network.

The two ideas which increased the accuracy were not just trusting the pixels:

1. subtract the background so the lighting cancels, average ~48 renders into one soft template per digit, and refuse to answer when the runner-up is too close.

2. When the real captcha refused pixel templates, the fix was not a better algorithm. It was asking for less: five numbers about where the ink is, instead of a picture of it.

Everything here is runnable: sample.rb, pipeline.rb, eval.rb, figures.rb, MIT licensed at github.com/zoras/create-and-solve-captcha-with-rubyvips . Every number above comes from a seed; ruby eval.rb reproduces the whole table.
